Suspension Improvements Upgrade.

Post by chameleon »

Well boys and girls, all I can say is WOO HOO !!!
I dropped my bike off yesterday with, original shock, original F/end with original fork oil no doubt, and picked it up this arvo fitted with Wilbers springs and some valves up front and a juicy Ohlins rear shock complete with low-speed damping and remote preload for those days when the girl comes along. I had the fork seals replaced, one was dodgy, and while Steve had it stripped down the steering head bearings were replaced also as they were a little notchy after 49 000km. Now this was no cheap job, but it was done right I believe and a few behind the scenes things took place as well. He greased the linkages and found one loose, sussed it out and finding nothing wrong tightened it all up down there. The data sheet from Ohlins specified mounting the low-speed adjustment can under the side cover but a nice external spot was chosen and Steve knocked up a very professional bracket to mount it where it would be easier to reach, *and see* 8)
Fork protectors "with ads* were also a nice touch.

What a difference these upgrades made to my old ZZR11. I've only ridden about 50km on the new system but I sought out a few of the rougher roads and sweepers around where I live and the bike handled as though the road was smooth. :P :P :P :P Farking Amazing!! Feels like I'm on a 750, not some huge sport tourer. It's been adjusted for optimum performance at speed, on bumpy country roads and highways "which means MOST of the roads and highways" :x So it's a little firm around the backstreets he said, and I noticed. But it doesn't seem uncomfortable and certainly better than the *boing boing* I had previously with my compression damping on the 3rd or 4 settings. Hitting patchy roadworks and ripples hardly upsets it at all now, just a mild Bop Bop as you cross the rough stuff. Very competent.

I'll shut up now :lol:

Here are some snaps of the hardware
Attachments

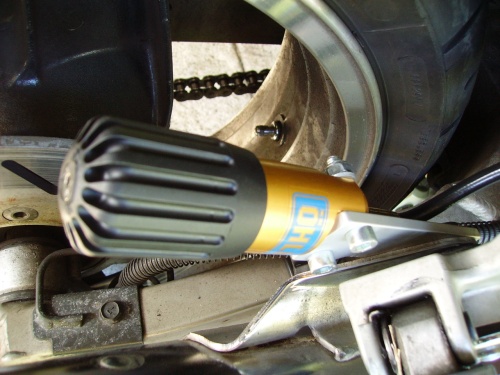

rebound can.jpg
rebound can.jpg (103.06 KiB) Viewed 3362 times

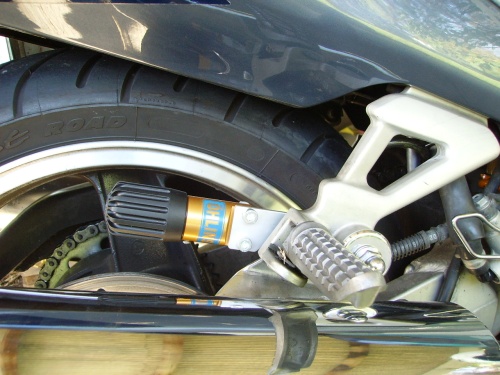

rebound damping.jpg
rebound damping.jpg (79.69 KiB) Viewed 3358 times
rebound damp.jpg
rebound damp.jpg (87.9 KiB) Viewed 3345 times

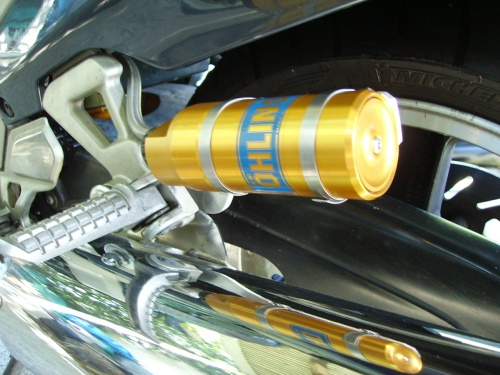

Hydraulic preload.jpg
Hydraulic preload.jpg (97.27 KiB) Viewed 3346 times

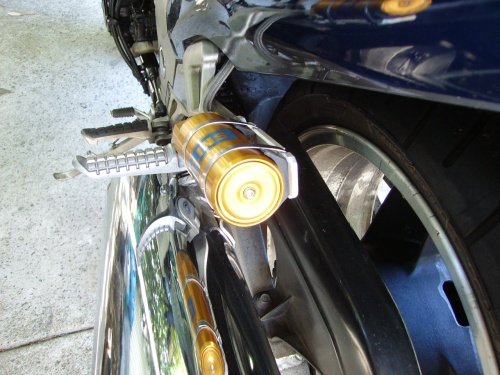

preload adj.jpg
preload adj.jpg (91.79 KiB) Viewed 3336 times

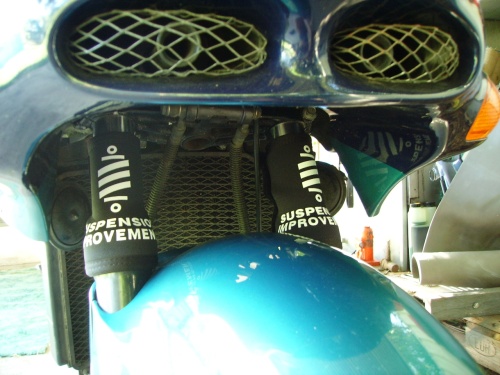

fork protectors.jpg
fork protectors.jpg (92.1 KiB) Viewed 3331 times
ohlins KA309.jpg
ohlins KA309.jpg (41.49 KiB) Viewed 3307 times
Last edited by chameleon on Thu Mar 16, 2006 5:43 pm, edited 1 time in total.
Top
ZX10R King
KSRC Contributor
KSRC Contributor
Posts: 1062
Joined: Sun Oct 30, 2005 5:49 am
Location: Coorparoo, Brisbane
Contact:
Contact ZX10R King

Post by ZX10R King »

so, when r ya comin' for a ride? And ya better hope ya girl doesn't kick the adjuster too hard when she's on ur back......:lol:
SXC in black, '05 ZX10R

Top
chameleon
KSRC Regular
KSRC Regular
Posts: 763
Joined: Sat Nov 26, 2005 8:38 am
Location: Briso

Post by chameleon »

ZX9R King wrote:so, when r ya comin' for a ride? And ya better hope ya girl doesn't kick the adjuster too hard when she's on ur back......:lol:
Yes, it needs to be moved up and in a little, it was one of the first things he pointed out to me. He realized that after he had made the bracket and fitted it, that it could have been in more. Trouble was he was working to a price and remaking it would have added a lot of extra time "he said". Actually there was no charge incorperated in fitting the rear shock. :) Fitment was a freebee if I got the front rebuilt at the same time. No doubt he made a little profit on the shock itself. :wink:
Top
Barrabob
KSRC Contributor
KSRC Contributor
Posts: 1882
Joined: Sat Sep 18, 2004 11:00 am
Location: Brisbane

Post by Barrabob »

Frank I would be looking for a new home for that compression can once you are happy with the way its setup, I have mine clamped to the subfame well actually its on the floor at the moment i will get around to putting it back on the bike.

Firm without the banging is good and no wallow as well.

Just need to go for a good ride now like to armidale or something. :D
Last edited by Barrabob on Thu Mar 16, 2006 7:15 pm, edited 1 time in total.
If I rode my bike at the speed of light, what would happen when I switched on its headlights?

Top
User avatar
Wattie
VIP MEMBER
VIP MEMBER
Posts: 10041
Joined: Mon Oct 31, 2005 12:23 pm
Bike: ZX10R
State: New South Wales
Location: Bligh Park

Post by Wattie »

awesome stuff, but youneed to clean you back wheel, eeewww yucky!! :lol:
Wattie #55
ZX10R "The Crim"
ZX10R "Gumby"
Proudly Supported by Allfixed Automotive 9634 1455
sam & srt, survived
RGM, left a message
Top
User avatar
Nanna10r
Team Ninja
Posts: 4291
Joined: Wed Jul 14, 2004 10:42 pm
Bike: ZX10R
State: Queensland
Location: Brisbane Australia

Post by Nanna10r »

Onya Frank cant wait to see how it handles.
Cheers Brett
"Nan & Pop Racing"
Poppy Hops on .... CBR150 (Superlite) CBR954 "Blade"
Nanna Naps on .... MoriWAKI NSR85 (Motolite) ZX10R "Crim"
We may ride like Old Can'ts, But Phuk we look DOOG !!!!!!
Top
User avatar
ttc
Team Black
Posts: 2893
Joined: Fri Nov 19, 2004 2:59 pm
Bike: Z1000
State: Queensland
Location: Brisbane

Post by ttc »

Well done, Steve rocks :D
Top
User avatar
ozx6r
Team Crim
Posts: 1194
Joined: Tue Jan 18, 2005 7:29 pm
Bike: ZX6R
State: Queensland
Location: Brisbane
Contact:
Contact ozx6r

Post by ozx6r »

god stuff mate :o
would love to do the same but the cashola is short atm!

will see ya out on the asphalt
97 - zx6r
05 - zx10r
Top
bonester
KSRC Contributor
KSRC Contributor
Posts: 2075
Joined: Sun Apr 17, 2005 1:00 pm
Location: Toowoomba/Ipswich Queensland

Post by bonester »

Awesome Frank- always wanted to do that to my 1100. Biggest complaint on the 11 was the suspension. Not only that it looks good too! :lol:
2 X ZRX1200R 4 X ER6N, GT550, 1988 ZX-10, 4 X GPZ250R, 4 X GPZ900R and GPZ750R :) Yeah I like Kawasakis.
Top
User avatar
Strika
VIP MEMBER
VIP MEMBER
Posts: 8373
Joined: Tue Feb 01, 2005 8:02 am
Bike: Yamaha
State: Victoria
Location: Melbourne

Re: Suspension Improvements Upgrade.

Post by Strika »

chameleon wrote:Well boys and girls, all I can say is WOO HOO !!!
It's been adjusted for optimum performance at speed, on bumpy country roads and highways "which means MOST of the roads and highways" :x So it's a little firm around the backstreets he said, and I noticed. But it doesn't seem uncomfortable and certainly better than the *boing boing* I had previously with my compression damping on the 3rd or 4 settings. Hitting patchy roadworks and ripples hardly upsets it at all now, just a mild Bop Bop as you cross the rough stuff. Very competent.

I'll shut up now :lol:

Here are some snaps of the hardware

Now where is that Jealousy emoticon when you need it???? :lol: Nice stuff.
"I hate to advocate drugs, alcohol, violence or insanity to anyone, but they've always worked for me" Hunter S. Thompson.
There are really only two questions in life. 1.Which way do i go? 2.What is the lap record?
Top
Tones
KSRC Member
KSRC Member
Posts: 181
Joined: Sun Dec 18, 2005 6:40 pm
Location: SE Melb

Post by Tones »

Cooolllsss....congrats.....when suspension is set up, with the right components it can make such a diff. Really shows you how much of a diff it can make. I have had a few bikes done in the past and it goes against the laws of physics. That is to say, I have found my bike sto have been more comfortable to ride, and handle a heap better as well. And to top it off tyre wear decreases!!!! Due to the fact the suspension is working with the tyre, instead of against it. Suspension is what I consider one of the best investments in a bike. I am sure you wont be dissappointed


Cheers
Top
Felix
KSRC Contributor
KSRC Contributor
Posts: 1173
Joined: Thu Sep 02, 2004 1:54 am
Bike: Suzuki
State: Overseas
Location: Osaka

Post by Felix »

Told ya Steve knew what he was doing!
- Team Furball -

Top
bonester
KSRC Contributor
KSRC Contributor
Posts: 2075
Joined: Sun Apr 17, 2005 1:00 pm
Location: Toowoomba/Ipswich Queensland

Post by bonester »

I hope you have got good security stuff on the bike- the Ohlins might invite the wrong sort of attention... :?
2 X ZRX1200R 4 X ER6N, GT550, 1988 ZX-10, 4 X GPZ250R, 4 X GPZ900R and GPZ750R :) Yeah I like Kawasakis.
Top
User avatar
ttc
Team Black
Posts: 2893
Joined: Fri Nov 19, 2004 2:59 pm
Bike: Z1000
State: Queensland
Location: Brisbane

Post by ttc »

Had a guy come into work yesterday same bike as me, and slightly built..

I said if you're keeping this bike, get the suspension done!! (and that i knew exactly who to talk to)

and showed him the pretty bling bits :D
Top
chameleon
KSRC Regular
KSRC Regular
Posts: 763
Joined: Sat Nov 26, 2005 8:38 am
Location: Briso

Post by chameleon »

bonester wrote:I hope you have got good security stuff on the bike- the Ohlins might invite the wrong sort of attention... :?
I see a ZZR11 near a job I have, he parks it on the footpath every night, no disk loc, nothing :? I keep mine up the back yard behind a trailer in the carport, disc lock and bike cover. It's either there, or at the G/friends in her lockup garage. Always put the stearing lock on too, even If I'm just nipping in to a shop for a sec.

God help anyone I ever catch fucking with her, I swear I'll bust their face, and definately several ribs :lol:
Top
